• Design study for 140 feet fast cruising ketch.
  • This rendering was intended to show the exterior style of the yacht with a single mast rig.

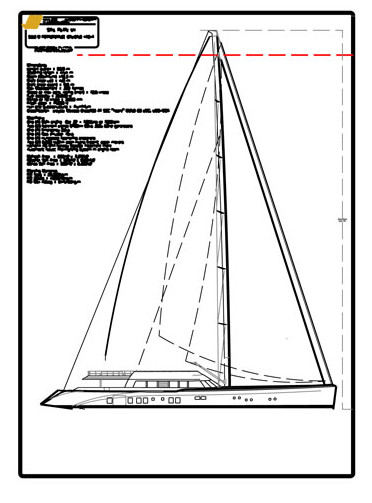

  • Preliminary design concept for a fast cruising ketch showing the overall sail plan arrangement
  •  This drawing shows the underwater lifting keel design concept to enable the yacht to anchor in the shallow water with the keel in the raised position.

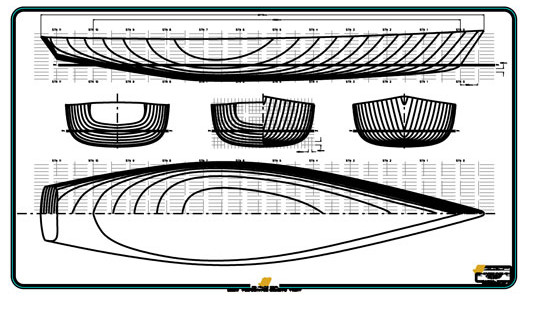

  • Preliminary lines plan design concept

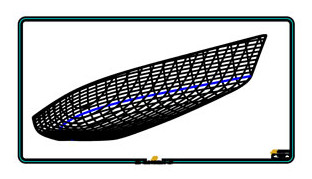

  • 3-Dimensional lines plan design concept

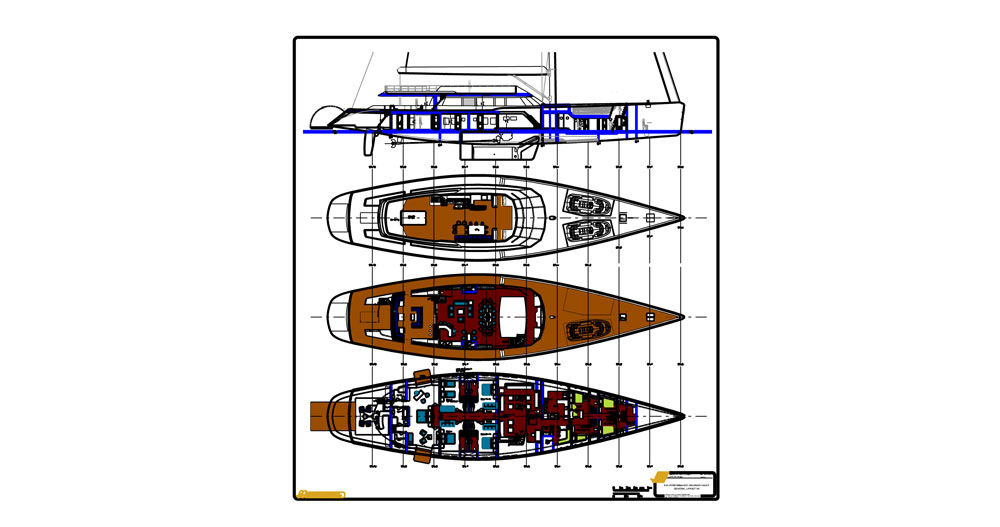

  • General arrangement drawing of interior and deck area for 140 ft fast cruising yacht.

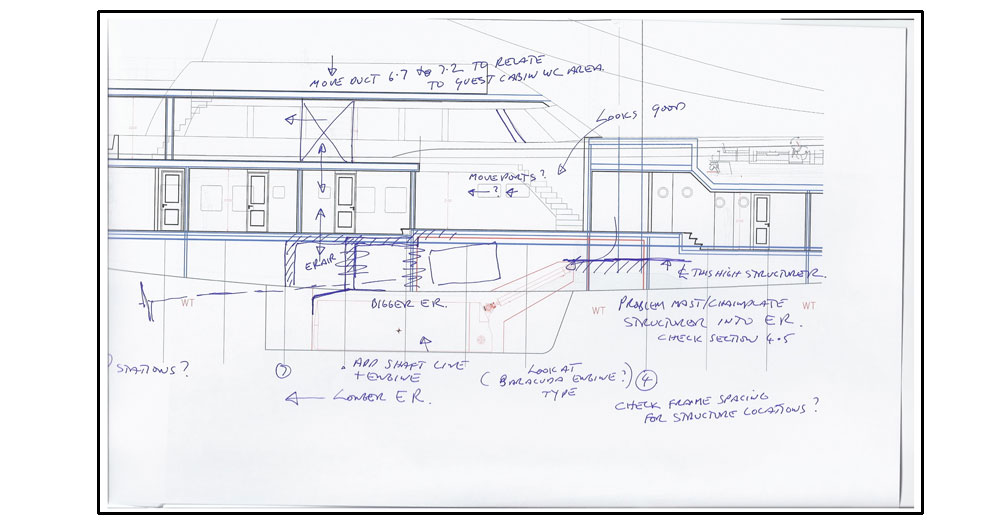

  •  Developing the interior arrangement. The main idea was to open the connection between the upper and lower saloon to create a large antrum effect. This drawing illustrates the early development of verifying the many different details of the interior design.
