Mirabella V

  • This drawing of Mirabella V has been developed to locate the principal structural bulkheads and check the fairness of the sheer line.

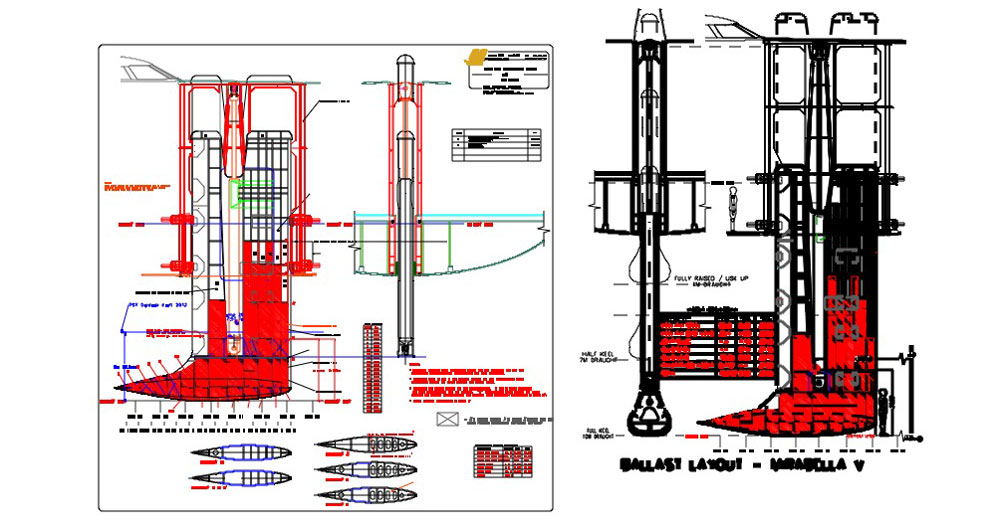

  • This drawing shows the overall details for the ballast layout (lead ballast location shown in red). It also shows when the keel is in its raised location, the top of the keel is visible above the cabin top.

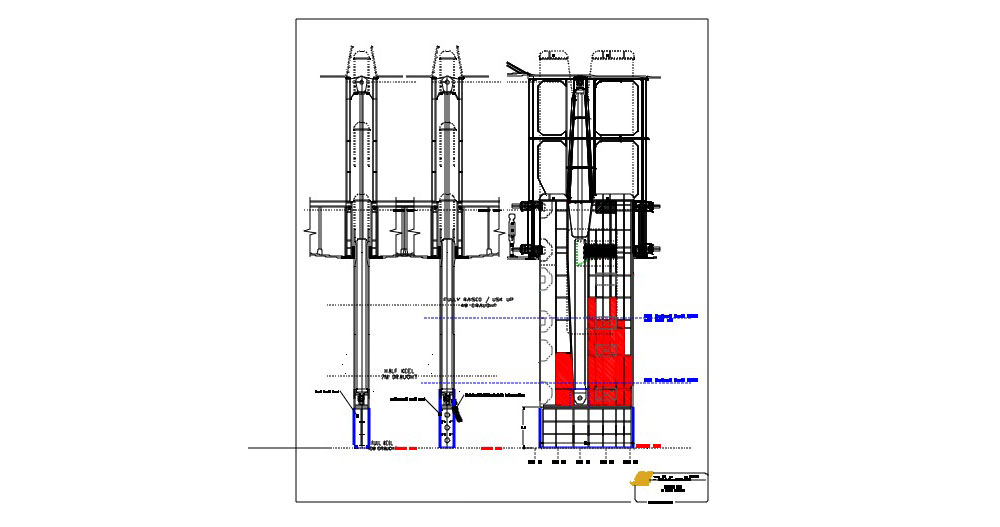

  • This drawing shows the construction detail for the 150-ton lifting keel. It also shows the hydraulic clamping system to ensure when the keel is raised or lowered, it is locked in place.
